Galvanized Coated Condenser Pipe Production

Güler Boru A.Ş. It manufactures single layer welded galvanized coated coil steel pipe / condenser pipe in different sizes and tolerances according to customer demand.

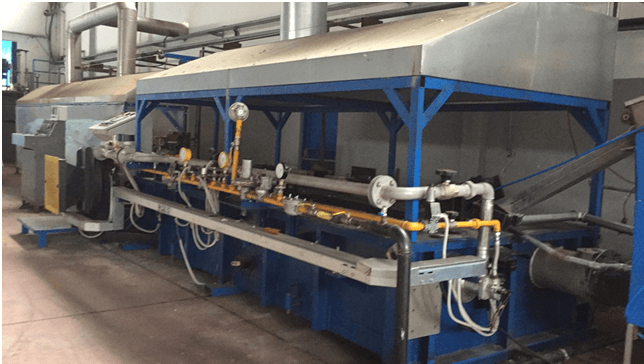

It produces galvanized steel pipes by nitrogen stripping method.
Coating thickness is 5µ-20µ.
Corrosion test (salt test) is carried out according to TS EN ISO 9227 standard.



GALVANIZED COATED CONDENSER / STEEL PIPE DIMENSIONS:

EXTERNAL DIAMETER

WALL THICKNESS

Min.

Max.

Min.

Max.

4 mm.

10mm.

0.50mm

0.80mm.



GALVANIZED COIL / ROLLERS:

Inner Diameter

Outer Diameter

Height

Quantity

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Max.

600mm.

1200mm.

700mm.

1000mm.

220mm.

240mm.

110kg.

310kg.
